Endoscopic ultrasound in interventional pulmonology

Introduction

Lung cancer is the leading cause of cancer related deaths worldwide (1). Routine lung cancer surveillance has resulted in early detection of pulmonary nodules and masses. Accurate staging of the mediastinum is essential to determine the appropriate treatment plan in patients with potentially operable non-small cell lung cancers (NSCLC). Early identification of positive N2 or N3 lymph nodes and distant metastases on positron emission tomography-computed tomography (PET-CT) in combination with definitive tissue diagnosis prevents futile thoracotomies. Early detection of N1 lymph node metastases in candidates with poor lung function can also guide the decision process between stereotactic radiosurgery (SBRT) versus concurrent chemo-radiation (2).

Non-invasive radiological tests including computed tomography (CT) and PET-CT scans have improved radiological staging of lung cancer. However, these techniques cannot provide definitive tissue diagnosis and are associated with high false-positive rates and low sensitivities and specificities (3-11). Traditionally, the gold standard test in mediastinal staging has been cervical mediastinoscopy. However, this procedure is invasive, requires general anesthesia, and is associated with significant risk.

Needle sampling techniques with minimally invasive techniques such as endobronchial ultrasound (EBUS) and endoscopic ultrasound (EUS), or a combination of both, are proving to be extremely useful in the diagnosis and mediastinal staging of lung cancers (12-17). Currently, it is recommended as the initial approach and may be superior over surgical staging as the first test in lung cancer staging and diagnosis of mediastinal masses, lymphadenopathy, and metastatic disease (2,18-21).

Here we discuss the utility of EUS along with combined EBUS/EUS, and highlight some of the technical aspects of the procedure. We will review the current role of EUS technique for the evaluation of mediastinal adenopathy and staging of lung cancer. We will also briefly discuss its use in diagnosing mediastinal infection and granulomatous lesions in the thoracic cavity.

Lung cancer staging and guidelines

Lung cancer staging dictates therapy and prognosis. By identifying N2/N3 lymph nodes and distant metastases, it prevents futile surgery and identifies patients who may benefit from neoadjuvant treatment. Staging is also important in order to identify N1 lymph node metastases in candidates with poor lung function before planning SBRT or sub-lobar resection.

Current European Society of Gastrointestinal Endoscopy (ESGE), European Respiratory Society (ERS), European Society of Thoracic Surgeons (ESTS), American College of Chest Physicians (ACCP), and National Comprehensive Cancer Network (NCCN) guidelines recommend staging in all central tumors, peripheral tumors >3 cm, lymph nodes >1 cm on CT scan, N1 lymph node involvement on PET-CT, PET positive mediastinal nodes with standardize uptake value (SUV) >2 even if lymph node size is less than 1 cm, and primary tumor on PET even with SUV <2. Peripheral tumor size <3 cm without lymph node involvement on CT and PET-CT do not require invasive mediastinal staging (21,22).

ESGE, ERS, and ESTS guidelines recommend a combination of EBUS/EUS over either test alone in mediastinal staging of lung cancer (22). Negative findings on endosonography should be surgically confirmed in patients with suspicious lymph nodes on either CT or PET-CT. ACCP lung cancer guidelines recommend EBUS transbronchial needle aspiration (EBUS-TBNA), EUS fine needle aspiration (EUS-FNA), or the combination of both over surgical staging as the initial test for staging of the mediastinum in NSCLC (21).

Background on EUS

EUS-FNA is a minimally invasive ultrasound-guided FNA technique that goes through the esophagus. When a linear EBUS ultrasound scope is used to sample tissue through the transesophageal route, the terminology is EUS-B.

The linear convex EUS scope used in EUS is a flexible scope, which is approximately 13mm in its outer diameter. It has a wider range of imaging compared with the EBUS scope. It provides 180° view, which is parallel to the shaft of the endoscope and obtains images at a depth ranging from 3 to 8 cm. EUS can also be performed using a convex EBUS scope (EUS-B). The convex EBUS scope is a flexible scope with a field of vision between 50° and 80°, which is parallel to the shaft of the endoscope. It can obtain images at a depth between 2 to 5 cm depending on the scope used. Figure 1 demonstrates the differences in appearance of lymph node stations 7, 4L, and 5 via EBUS and EUS. Although the EUS scope has a better range of imaging, there is no statistically significant difference in the yield when comparing the use of the EUS-B versus EUS scope in sampling mediastinal lymph nodes through the esophagus (23). There is also no difference between EUS-B versus EUS in sampling left adrenal metastases (24). However, conventional EUS scope may be more helpful if the target lesion is in the right adrenal gland, since the right adrenal gland cannot be reached with the EUS-B technique.

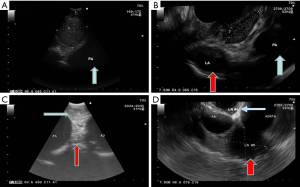

Figure 1 Appearance of lymph nodes and mediastinal structures on endobronchial ultrasound (EBUS) versus endoscopic ultrasound (EUS). (A) Station 7 seen with EBUS. Blue arrow pointing to the pulmonary artery (PA). (B) Station 7 seen with EUS. Red arrow pointing to part of the left atrium (LA), which is seen anterior and distal from the node. Blue arrow pointing to the pulmonary artery. (C) Station 4L (blue arrow) and station 5 (red arrow) seen with EBUS. Aorta (AO) and pulmonary artery are seen cephalad (right side of the screen) and caudal (left side of the screen), respectively, from station 4L. Station 5 is anterior and lateral (bottom of the screen) from station 4L and the pulmonary ligament (not seen). (D) Station 4L (blue arrow) and station 5 (red arrow) seen with EUS. Station 5 is anterior and lateral (bottom of the screen) to the ligamentum arteriosum (not seen).

Technique

The technique of needle aspiration with EUS is similar to EBUS. Lymph node puncture is achieved with a quick forward movement advancing the needle. In and out movements are performed with the needle inside the lymph node. It is very important to see the needle moving inside the lymph node and not to move the lymph node with the needle. Balloons filled with saline can be used to overcome poor contact between the ultrasound probe and the esophageal wall. It can assist with obtaining a clear ultrasound image. Although it can help enhance image acquisition, it is unclear if this translates into better diagnostic yield. There are currently no studies comparing balloon use in improving diagnostic yield with endosonography. Of note, for patients with latex allergy, latex-free balloons are available for linear EUS scopes (25).

Lymph node stations and structures accessible by EUS

EUS-FNA is helpful for accessing lesions close to the esophagus, including lymph nodes in the inferior mediastinum and structures below the diaphragm. The lymph nodes and structures accessible by EUS include lymph nodes in stations 2R, 2L, 3P, 4L, 5, 7, 8, 9, celiac axis, left lobe of the liver, bilateral adrenal glands, and spleen (26). Lymph nodes in station 4R can sometimes be reached if the nodes are large enough (>2 cm). New techniques to reach the para-aortic station 6 lymph nodes can also be performed using EUS. This can be done with or without traversing the aorta (27,28). Table 1 provides an outline of the lymph node stations and structures accessible with different diagnostic techniques.

Mediastinal lymph nodes

Although rare, studies have shown that one in 30 patients may have isolated involvement of an inferior mediastinal lymph node without concurrent involvement of upper mediastinal lymph nodes in patients with NSCLC (29). These inferior lymph nodes in stations 8 and 9 cannot be accessed with EBUS. Additionally, access of lymph nodes in the aorto-pulmonary (AP) window and para-aortic area (stations 5 and 6) is not possible with EBUS (30).

EUS can reliably take needle aspirations from the left paratracheal (stations 2L, 4L), subcarinal (station 7), and inferior mediastinal (stations 8, 9) lymph nodes. EUS also allows for better visualization of lymph nodes in the AP window and para-aortic area (stations 5, 6). Access to lymph nodes in station 2R and 4R is limited due to the intervening trachea, however can sometimes be reached if the lymph nodes are large enough.

AP window lymph nodes and para-aortic lymph nodes are not accessible by standard mediastinoscopy. Typically, Chamberlain procedure (left anterior mediastinotomy), extended cervical mediastinoscopy, or video-assisted thoracoscopic surgery (VATS) is needed to reach these lymph nodes. A new technique to reach the para-aortic (station 6) lymph nodes without traversing the thoracic aorta using EUS-FNA have been described (27,28). In a prior case series of 12 consecutive patients, access of lymph node in station 6 was performed with the needle passing through the proximal esophagus into the mediastinum, directed toward the para-aortic location to reach and enter the para-aortic lymph node without piercing the aorta or great vessels. Successful cytologic diagnosis of station 6 lymph nodes were obtained in all cases. No morbidity resulted from the procedure nor was any observed at 30 days after the procedure (29).

Adrenal glands

Lung cancer with metastases to the adrenals are common (31-33). Isolated adrenal metastasis from lung cancer has been reported (34). EUS-FNA has been demonstrated to safely evaluate adrenal gland involvement (31). To reach the left adrenal gland, the EUS scope is introduced into the stomach and the left kidney is identified by looking backwards to the left. The adrenal is identified with bird-like appearance. To reach the right adrenal gland, the EUS scope is introduced distally deep into the duodenum. Once the right kidney is identified, the scope is slowly withdrawn above and anterior to the right kidney while scanning for the adrenal gland. With the ability to evaluate the adrenal glands with EUS, one can sample both adrenal and lung lesions in the same session, while simultaneously providing accurate disease staging (33,35).

Our previous experience with adrenal sampling using EUS-FNA with 22G needle included a case series of 13 patients. The presence or absence of metastasis was conclusively established in all 13 patients, providing a diagnostic yield of 100% (36). This is consistent with previously reported studies (35,37).

Transvascular biopsy

In a previous retrospective study of 33 consecutive patients who underwent combined EBUS/EUS mediastinal staging, transvascular biopsy was performed via EUS in 19 patients and EBUS in 14 patients. In the study, biopsies via the branches of the pulmonary artery was performed in 14 patients and biopsies via the aorta was performed in 19 patients. Overall yield was 73%. No complication was seen during the immediate post-procedural period. Median follow-up was 12 months, with no complications described (38).

Similarly, Wallace et al. described a transvascular approach in the diagnosis of a 2.6-cm right lower lobe lung mass with 25G needle via single transaortic pass under linear EUS visualization (39). Additionally, von Bartheld et al. retrospectively reviewed the performance and safety of EUS-guided transaortic approach in 14 patients using a single pass with a 22G needle and described sensitivity between 64–75% and specificity of 100% (40). The lower sensitivity with transvascular approach was thought to be due to the lower number of passes and the targets biopsied (41,42).

Central tumors

Transesophageal lung biopsy of a central tumor close to the esophagus using EUS can be performed safely (43). A study compared the tolerance, efficacy, and safety of EBUS-TBNA versus transesophageal EUS-guided FNA with EBUS scope for the diagnosis of lesions accessible by both procedures. No difference in accuracy was noted between the two modalities, but it concluded that EUS had the advantage of comparable tolerance with fewer doses of sedatives, shorter procedure time, higher operator satisfaction, and fewer oxygen desaturations during the procedure (44).

Our experience with transesophageal lung biopsy of central tumors close to the esophagus using EUS-FNA with a 22G needle included a case series with 20 patients. Adequate tissue sample was obtained in 19 of 20 patients, all of which led to a definitive diagnosis, with a 95% diagnostic yield. This is similar to previously reported studies with diagnostic yields between 95–100% (43,45-47).

Efficacy of EUS

In one study, the sensitivity, specificity, positive predictive value (PPV), and negative predictive value (NPV) of EUS-FNA for cancers of the mediastinum was reported to be 92%, 100%, 100%, and 80%, respectively (48). Two meta-analysis report pooled sensitivities of EUS-FNA in nodal staging of NSCLC of 83% and 89% (21,49). A randomized study of 40 patients by Tournoy et al. compared EUS-FNA versus surgical mediastinoscopy (50). In their study, the sensitivity of EUS-FNA was 93% compared with 73% for surgical staging.

The sensitivity of EUS-FNA for detecting occult metastases in a radiographically normal mediastinum is approximately 58% (49). A prospective study evaluated the role of EUS-FNA in a radiographically normal mediastinum on CT scan. EUS-FNA identified 2 patients with N3 disease in 56 patients in this group (51). In another trial, EUS-FNA identified N2 disease in 5 out of 47 patients with radiographically normal mediastinum on CT scan (52).

Efficacy of combined EBUS with EUS

Combining EBUS-TBNA with EUS-FNA/EUS-B-FNA provides a much broader ability to biopsy lymph nodes compared with conventional mediastinoscopy in staging NSCLC. It allows for the complete staging of the mediastinum and allows access to commonly involved metastatic structures below the diaphragm.

Wallace et al. demonstrated that combined EUS/EBUS has a sensitivity of 93% for detecting mediastinal lymph node metastasis (53). In a different study, the sensitivity, specificity, NPV, and diagnostic accuracy of combined EBUS/EUS/EUS-B were reported as 91%, 100%, 96%, and 97%, respectively (54). Further review of literature revealed similar consistent sensitivities of combined EBUS/EUS (19,20).

The sensitivity of mediastinal nodal staging in patients with proven or suspected lung cancer is increased when EUS/EUS-B-FNA is added to EBUS-TBNA (55). In one study, the average increase in sensitivity with combined EBUS-TBNA/EUS-FNA was 21% compared with EUS-FNA alone and 13% compared with EBUS-TBNA alone (22). In a separate study of 138 patients who underwent combined EBUS/EUS, EUS better identified malignant disease in lymph nodes of stations 5, 6, and 7 (53). Per Korevaar et al., a meta-analysis of 13 studies showed that adding EUS/EUS-B to EBUS increased sensitivity by 12% and addition of EBUS to EUS/EUS-B increased sensitivity by 22%. The mean sensitivity of a combined approach was 86% with NPV of 92% (56).

The increase in sensitivity of diagnosing and staging mediastinal nodes is also true when the EUS portions of the exam is performed using a convex probe EBUS scope (EUS-B). A trial of patients with NSCLC who underwent EBUS and EUS in the same procedure using the bronchoscope rather than an EUS endoscope demonstrated sensitivities of 89% with EUS-B alone, 92% with EBUS-TBNA alone, and 96% with combined EBUS-EUS-B (55).

A prospective trial of 166 patients comparing combined EBUS/EUS versus mediastinoscopy showed that combined EBUS/EUS was diagnostic for N2/N3/M1 disease in 14% of patients whom standard mediastinoscopy findings were negative; preventing futile thoracotomy and invasive VATS procedure (54). This was further validated in a separate multicenter randomized study comparing combined EBUS/EUS with surgical staging, which also demonstrated that endosonography was more sensitive than surgical staging in N2/N3 lymph node disease (57).

It is important to recognize that EBUS and EUS should not be considered competitive, but rather complementary. Combined EBUS/EUS/EUS-B can potentially replace surgical staging in patients with NSCLC. Consequently, it is important for the provider to choose the best approach depending on the available resources, expertise, and biopsy target location of interest.

Role of combined EBUS/EUS in accessing a radiologically normal mediastinum

In a prospective trial that looked at combined EBUS and EUS-B for NSCLC staging in radiologically normal mediastinum on CT and PET-CT with clinical N1 disease, the overall sensitivity, accuracy, and NPV were 67%, 81%, and 73%, respectively. In this trial, all patients with negative results underwent subsequent mediastinoscopy. By adding mediastinoscopy, the sensitivity and NPV improved to 73% and 91%, respectively (58).

In another study by Szlubowski et al., 120 patients with radiologically normal mediastinum underwent combined EBUS/EUS followed by transcervical extended mediastinal lymphadenectomy (TEMLA) for negative results. In the 99 patients who underwent TEMLA, metastases were diagnosed in 9 patients. NPV of combined EBUS/EUS in this patient population is 91% (59). The authors concluded that in a radiologically normal mediastinum, surgical exploration of the mediastinum can be omitted if the results of the biopsy done for staging of NSCLC are negative by combined EBUS/EUS (59,60).

Role of combined EBUS/EUS in restaging the mediastinum after chemo-radiotherapy

Select studies have addressed the issue of restaging the mediastinum by endosonography in order to verify mediastinal lymph node clearance after chemo-radiotherapy for stage IIIA-N2 non-bulky NSCLC in patients being considered for surgery after neoadjuvant chemo-radiotherapy (61,62). Needless to say, it is important to identify patients who respond to chemo-radiotherapy since they may benefit from subsequent surgery.

In one study, the sensitivity of EUS-FNA alone for restaging the mediastinum after chemo-radiation is approximately 44% with a false-negative rate of 58% (63). Szlubowski et al. evaluated the utility of combined EBUS/EUS-B in restaging the mediastinum after chemotherapy in 106 patients. In this study, metastasis was diagnosed in 17% of patients via subsequent TEMLA in patients with negative biopsy specimen via initial combined EBUS/EUS-B. The authors concluded that endosonographic biopsy is generally more difficult and less sensitive compared with initial staging due to post-inflammatory adhesions and fibrosis (64,65).

Currently, ESGE/ERS/ESTS guidelines suggest that restaging after neoadjuvant chemo-radiation may be performed by EBUS-TBNA and/or EUS-B-FNA for detection of persistent nodal disease, but if negative, subsequent invasive surgical mediastinal staging is indicated before radical surgery is attempted (grade C recommendation) (22).

Role of combined EBUS/EUS in diagnosis of granulomas and infections

Combined EBUS/EUS has excellent yield when assessing granulomas in patients with sarcoidosis. The lymph node architecture is typically not destroyed and the hilum can be visualized. The diagnostic accuracy of combined EBUS/EUS is much higher at 80% compared with conventional bronchoscopic biopsies at 53% in patients with sarcoidosis (66).

Role of FNA cytology in diagnosing infection has expanded due to the increase in number of immunocompromised patients and increasing role of endosonographic FNA where infection is a major cause of illness. A previous retrospective study evaluated the utility of EBUS/EUS-FNA in diagnosing pulmonary coccidioidomycosis in 13 patients. In the study, combined EBUS/EUS led to the diagnosis in 9 cases, and 4 cases were diagnosed via EBUS or EUS individually. The study found that the mean time to diagnosis of pulmonary coccidioidomycosis was shorter with EBUS/EUS (1.6 days) compared with BAL (6.3 days), with P value of 0.003. No complications were noted in the study. The study concluded that combined endosonography facilitated early and accurate diagnosis of pulmonary coccidioidomycosis (67).

Role of EUS in SBRT

In patients requiring SBRT, EUS can assist with placement of fiducials within the target lesions in the lung parenchyma close to the esophagus. In a previous case series, fiducial placement using EUS was described in 6 patients using a 19G needle. No significant complications were noted (37).

Benefits of endoscopic techniques

In experienced hands, mediastinal staging with combined EBUS/EUS can be performed as an outpatient day case under conscious sedation without decreasing the diagnostic yield (68). Compared with traditional mediastinal staging with cervical mediastinoscopy, endoscopic techniques are less invasive and results in lower morbidity, more cost savings, and reduces patient discomfort.

Complications related to endosonographic needle aspiration include mediastinitis, sepsis, abscess, esophageal perforation, pneumothorax, mediastinal hematoma. The complication rate of endosonographic biopsy (EBUS/EUS) techniques is approximately 0.05% (69). No mortality has been reported in the literature (70,71). This is significantly lower and far less severe compared with the complication rate associated with conventional surgical biopsy. A meta-analysis of 5,687 patients by Toloza et al. showed that major morbidity after mediastinoscopy was seen in approximately 2%, including recurrent laryngeal nerve palsy (0.05%), hemorrhage (0.32%), tracheal injury (0.09%), and pneumothorax (0.09%) (72). Mortality with surgical mediastinoscopy has been reported to occur in 0.08%, typically related to major vascular injury (73).

While the overall cost of mediastinoscopy is approximately $12,000, the cost of EBUS/EUS done as a combined procedure in endoscopy under moderate sedation is approximately $4,000 (74). Furthermore, in the Assessment of Surgical sTaging versus Endoscopic Ultrasound in Lung Cancer (ASTER Study) by Rintoul et al., the cost-effectiveness analysis showed that use of combined EBUS/EUS mediastinal staging had lower mean cost and greater mean quality-adjusted life years (75). Since then, multiple other studies have validated the cost-effectiveness of endosonographic staging (76,77).

Training and competency

Expertise and skill of the endoscopist directly impacts the specimen obtained for cytologic interpretation. Systematic training in mediastinal endosonography should be based on knowledge of anatomy, performance on simulators, and supervised performance on patients. Diagnostic yield is highly operator-dependent and learning curve shows substantial variation between individual operators. ATS, ERS, and ACCP recommend 40 procedures for initial competence and 20 procedures per year to maintain competency. Yield and skill of the operator continue to improve after performing approximately 140 procedures (78-82).

Conclusions

EUS/EUS-B combined with EBUS provides the ability to completely stage the mediastinum and distant metastases that is not attainable with mediastinoscopy, including structures below the diaphragm. The two techniques (EBUS and EUS/EUS-B) should not be considered as competitive, but rather complementary to each other in order to improve mediastinal staging and diagnosis in thoracic malignancy.

We believe that combined EBUS/EUS/EUS-B is the new gold standard in the initial mediastinal staging of NSCLC when performed by an experienced operator. Training in EUS techniques in addition to EBUS allows for diagnosis and complete staging of lung cancer in a single session, thereby decreasing healthcare cost, time delays, increased sedation time, and patient discomfort. With its superior cost-effectiveness and reduced risk profile compared to conventional mediastinoscopy, endoscopic approach has replaced mediastinoscopy as the initial step in lung cancer staging and diagnosis (2,19,21,22).
