Minimally invasive resection of ectopic mediastinal parathyroid adenoma with use of the Da Vinci Xi robot

Introduction

Hypercalcemia in adults is defined as an ionized fraction of calcium above 5.6 mg/dL. Patients present with multiple orthopaedic, abdominal and neurological complaints. 90% of hypercalcemia cases are the result of malignancy or primary hyperparathyroidism.

Primary hyperparathyroidism is caused in 6–16% of all patients by ectopically located parathyroid tissue (1). The prevalence of a mediastinal parathyroid adenoma ranges from 6% to 30% in patients with ectopically located parathyroid adenomas (2).

Mediastinal parathyroid adenomas are most commonly located in the anterior mediastinum (3). They are often not accessible via a cervical approach, and sternotomy or thoracotomy are related with a significant increase in morbidity. A minimally invasive approach is feasible, but technically demanding. Robotic systems offer increased accessibility to lesions located in the mediastinum (2).

This particular mediastinal mass was resected using the da Vinci Xi^® surgical system. With only a handful of case reports published in over a decade, literature on the robotic resection of mediastinal parathyroid adenomas remains scarce ever since the first report in 2004 (4).

Case presentation

An 83-year-old woman was investigated for muscular weakness, related to hypercalcaemia. Primary hyperparathyroidism was evident (blood calcium level of 13.6 mg/dL; parathyroid hormone level of 673.2 ng/L). An FDG-PET-CT revealed a mediastinal mass without increased uptake located adjacent to the ascending aorta (Figure 1).

Figure 1 FDG-PET-CT showing a mediastinal mass without increased uptake adjacent to the ascending aorta.

Patient was referred for surgical resection.

Patient positioning and preparation: the patient was positioned in a supine position, with the right part of the thorax slightly elevated. Single-lung ventilation was established and CO2 was insufflated (Figure 2).

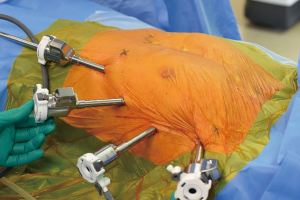

Figure 2 Port placement with a 30° endoscopic camera in the most caudal port.

The Da Vinci Xi^® patient side-cart was deployed to the left-hand side of the patient. The first trocar, for introduction of the 30° camera, was inserted in the 7th intercostal space. The tumour was easily visualised. Three more trocars were inserted to allow entry for one ProGrasp^® forceps, one Maryland bipolar forceps and one Cadiere forceps. This combination offers three degrees of force distribution and precision.

The mediastinal pleura were first incised alongside the caudal margin of the mass. The aorta and the superior caval vein were localized. The pleura were further dissected alongside the medial margins of the mass. Ventral adhesions to the thoracic wall were cut. The mass was then carefully detached from the ascending aorta and the superior caval vein. During the entire dissection, attention was given to the location of the mass relative to the ascending aorta, the superior caval vein and the phrenic nerve.

After full dissection, the ectopic parathyroid adenoma was removed using an Endobag™ (Figure 3).

Figure 3 Complete surgery as recorded by the Da Vinci^® endoscope (5). Available online: http://www.asvide.com/article/view/27485

A small chest tube was inserted.

The patient was extubated immediately after the procedure; the chest tube was removed two days postoperatively. The patient could be discharged on the sixth postoperative day, after an uneventful recovery. Calcium levels returned to normal within three days. A 1-year follow-up showed a complete restoration of the patient’s quality of life, without hypercalcemia.

Pathology confirmed the mediastinal mass to be an ectopic parathyroid adenoma, measuring 7 by 4.5 centimetres (Figure 4).

Figure 4 Resected mass measuring 7 by 4.5 centimetres.

Discussion

The Da Vinci Xi^® surgical system offers two main benefits over classic VATS, exemplified in this case. These are the increased range of motion of the Endowrist^® instruments, and the stereoscopic 3D HD image of its vision system. These were considered to be more beneficial than the mechanical feedback provided by the more rigid VATS due to the precarious location of the mass.

When compared to open surgery, open surgery comes with increased tissue damage, longer hospitalisation and a higher risk of complications than minimally invasive approaches.
